Electro Conductive Rubber Tubing: Precision Conduits for Demanding Applications
In the realm of advanced industrial components, where reliable signal transmission, static dissipation, and environmental sealing converge, electro conductive rubber tubing stands as a critical solution. Our high-performance tubing is engineered to provide a durable, flexible, and consistently conductive pathway, bridging the gap between robust mechanical protection and essential electrical functionality. Designed for OEMs and system integrators in high-tech sectors, this product ensures operational integrity in the most challenging conditions.
Product Overview

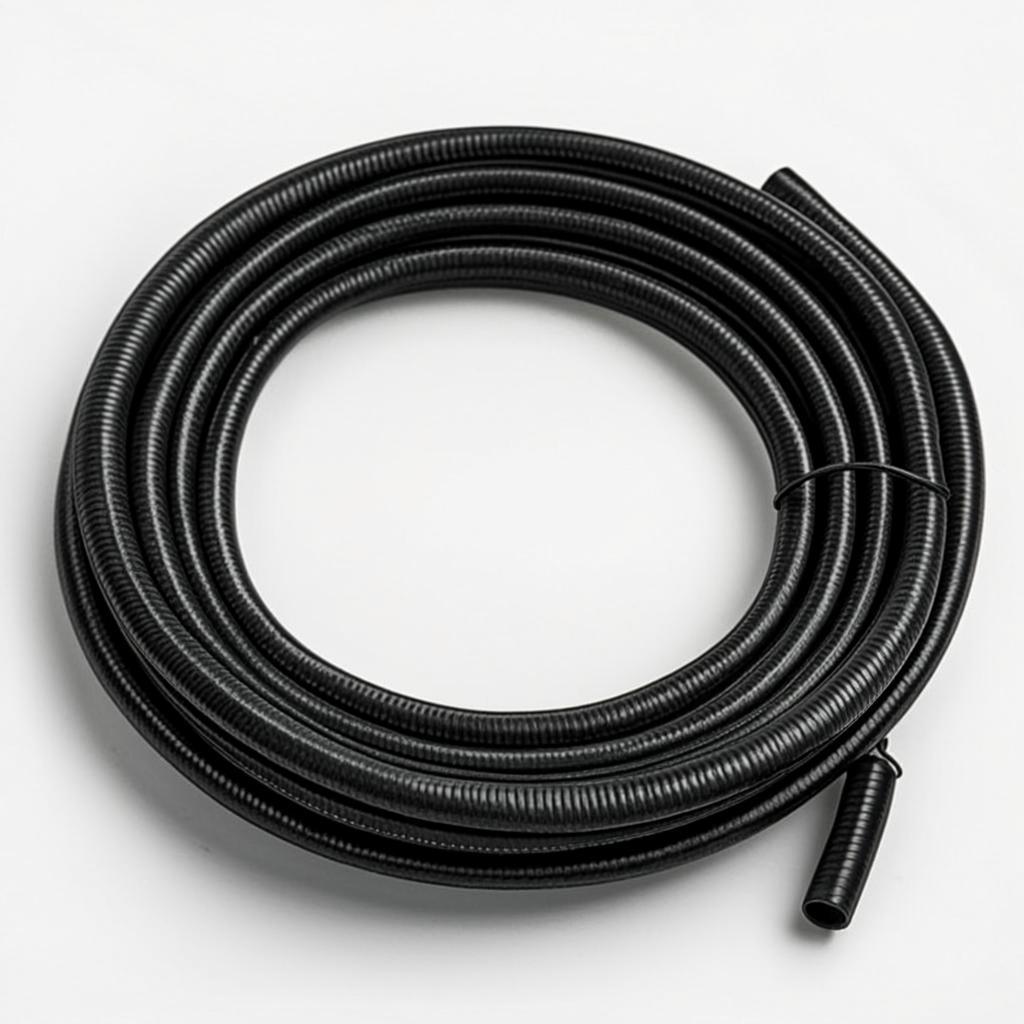

Our electro conductive rubber tubing is a specialized composite material, meticulously formulated by dispersing conductive elements such as carbon black or metallic particles into a high-grade silicone or fluorosilicone rubber matrix. This process yields a tube that maintains excellent flexibility and environmental resistance while offering a stable, low-resistance electrical path. It is the ideal component for applications requiring EMI/RFI shielding, static charge drainage, or the safe conduction of low-voltage signals, all within a sealed, rugged package. Available in a range of standard and custom sizes, it meets the precise demands of aerospace, automotive, medical, and industrial automation industries.
Key Features
- Consistent Volume Resistivity: Provides reliable and uniform electrical conductivity throughout the entire length and cross-section of the tubing.
- Superior Environmental Resistance: Excellent performance against ozone, UV exposure, extreme temperatures (-60°C to 200°C+ range), and various fluids.
- Maintained Flexibility: Retains elastomeric properties for easy routing and installation in complex assemblies without compromising conductivity.
- Durable Construction: Offers high tear strength and abrasion resistance for long service life in dynamic or high-vibration environments.
- Customizable Properties: Can be tailored for specific resistance values, colors, durometers (hardness), and enhanced chemical resistance.
Technical Specifications
| Parameter | Standard Specification | Notes / Custom Options |
|---|---|---|
| Base Material | Silicone Rubber (VMQ) / Fluorosilicone (FVMQ) | EPDM, Neoprene available upon request |
| Volume Resistivity | 1 - 10 ohm·cm (typical) | Adjustable from 0.1 to 10^6 ohm·cm |
| Operating Temperature | -60°C to +200°C | Short-term peaks up to 250°C possible |
| Durometer (Hardness) | 50 - 70 Shore A | Customizable from 40 to 80 Shore A |
| Inner Diameter (ID) Range | 1mm to 50mm | Precision tolerances available (±0.2mm typical) |
| Wall Thickness | 0.5mm to 5mm | Designed for optimal balance of flexibility and durability |
| Color | Black (standard) | Custom colors for coding or aesthetics |
| Certifications | RoHS, REACH Compliant | UL94 V-0, FDA, USP Class VI (for specific grades) |
Application Scenarios
The unique properties of our electro conductive rubber tubing make it indispensable across multiple high-stakes industries:
- Aerospace & Defense: Shielding for wiring harnesses, static discharge lines in fuel systems, and conductive ducting in avionics bays to prevent EMI interference.
- Medical Device Manufacturing: Used in sensitive monitoring equipment for grounding, in MRI suites for non-magnetic conductive components, and in pneumatic systems requiring static control.
- Automotive & EV: Protecting and grounding sensors and wiring in engine compartments, battery management systems (BMS) for electric vehicles, and within advanced driver-assistance systems (ADAS).
- Industrial Automation & Robotics: Providing EMI shielding for servo motor cables, creating static-safe pathways in material handling, and protecting sensitive control wiring.
- Semiconductor & Electronics: Essential in wafer handling equipment, cleanroom environments, and PCB manufacturing for effective electrostatic discharge (ESD) protection.
Advantages Over Alternative Solutions
Choosing our electro conductive rubber tubing offers distinct benefits compared to metal conduits or non-conductive rubber hoses:
- Integrated Functionality: Combines electrical conductivity with environmental sealing in one component, reducing part count and assembly complexity.
- Vibration Damping & Noise Reduction: The rubber matrix absorbs shock and dampens vibration, protecting internal components—a feature rigid metal conduits lack.
- Corrosion Resistance: Unlike some metals, the tubing will not rust or corrode, ensuring long-term performance in humid or chemically aggressive environments.
- Design Flexibility: Easily cut, routed around tight bends, and connected without specialized tools, simplifying installation and maintenance.
- Weight Savings: Significantly lighter than metal braiding or conduit, contributing to overall weight reduction in mobile or aerospace applications.
Why Choose Our Electro Conductive Rubber Tubing?
We are more than just a supplier; we are a technical partner dedicated to your project's success. Our commitment to excellence is built on three pillars:
- Precision Engineering & Consistency: Our advanced compounding and extrusion processes guarantee batch-to-batch consistency in both electrical and physical properties, a critical factor for reliable high-volume production.
- Deep Technical Expertise & Support: Our engineering team works collaboratively with clients to develop custom formulations, validate performance for specific use cases, and provide comprehensive technical data.
- Global Supply Chain Reliability: With ISO-certified manufacturing and a robust logistics network, we ensure on-time delivery of high-quality electro conductive rubber tubing to your facility, anywhere in the world.
Frequently Asked Questions (FAQ)
Q1: How is the conductivity achieved in your rubber tubing?
A: Conductivity is achieved by uniformly dispersing high-purity conductive fillers, such as specialized carbon black or nickel-coated graphite, into the rubber compound during the mixing process. This creates a percolated network within the elastomer, allowing electrons to flow while retaining the material's flexible properties.
Q2: Can the tubing be used for carrying high-voltage current?
A: No. Our standard electro conductive rubber tubing is designed for static dissipation, EMI shielding, and low-voltage/low-current signal conduction. It is not rated or safe for use as a primary high-voltage power cable insulator or conductor. Always consult our technical team for your specific electrical requirements.
Q3: Is it compatible with standard fittings and connectors?
A: Yes. The tubing can be used with standard push-to-connect fittings, barbed fittings, or clamps designed for its inner and outer diameter. For optimal conductivity in a system, ensure metal fittings make clean, firm contact with the tubing's conductive inner surface.
Q4: Do you offer custom sizes and resistance values?
A: Absolutely. We specialize in customization. We can produce tubing with specific inner/outer diameters, wall thicknesses, and most importantly, tailor the volume resistivity to meet your exact application needs, from highly conductive to static-dissipative ranges.
Q5: How do I clean or maintain the tubing?
A: The tubing is generally low-maintenance. For cleaning, use a mild soap solution and a soft cloth. Avoid abrasive cleaners or strong solvents that could degrade the rubber compound or affect surface conductivity. Regular visual inspection for cuts, abrasions, or permanent deformation is recommended.
Contact our technical sales team today to discuss your application requirements, request samples, or receive a detailed quotation for our high-performance electro conductive rubber tubing.
